SHAFT PROGRAMME
Plastics and composites have great potential in the construction industry…
Manhole base liners

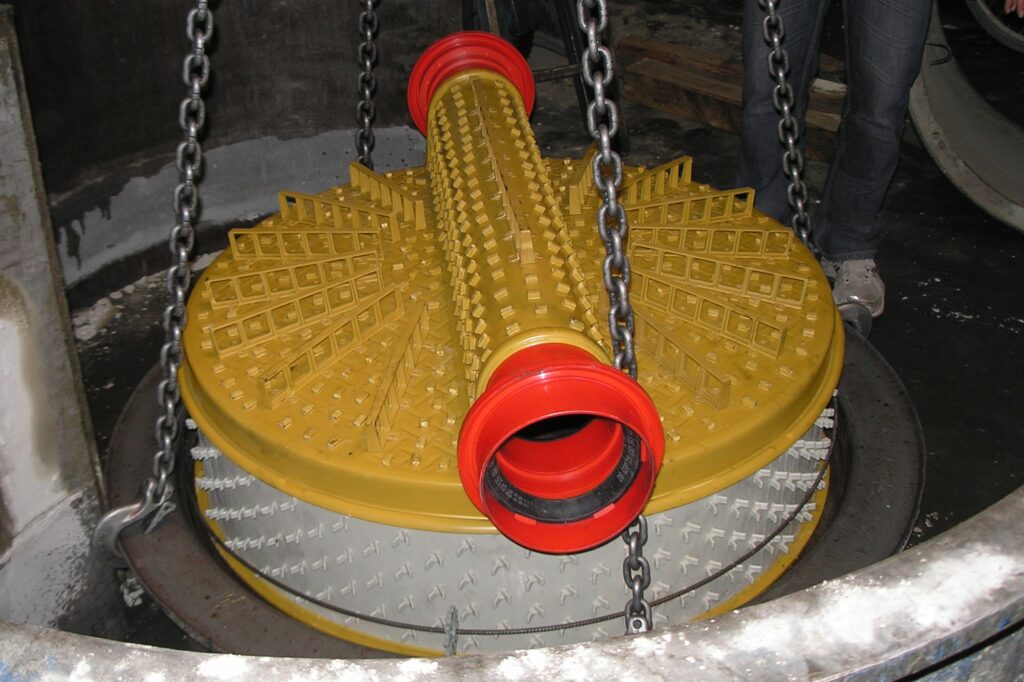

The plastic or glass fibre reinforced (GRP) manhole bottom is the ideal protection for the concrete shaft in the area of the channel and the berm from the negative effects of sewage waters.
The shaft bottom has excellent hydraulic properties and is found to provide smooth sewage system operation, easy maintenance, cleaning and wear resistance.
High-quality materials and manufacturing processes guarantee a long service life.
A huge range of variants can meet every customer requirement.
WHY PP/GFK MANHOLE BASE LINER?
- resistance to corrosion and mechanical action
- hydraulically optimal shapes
- minimum maintenance requirements
- seamless bonding to concrete
- possibility of connecting all types of pipes
- Infinite variability in Fibreglass laminate products

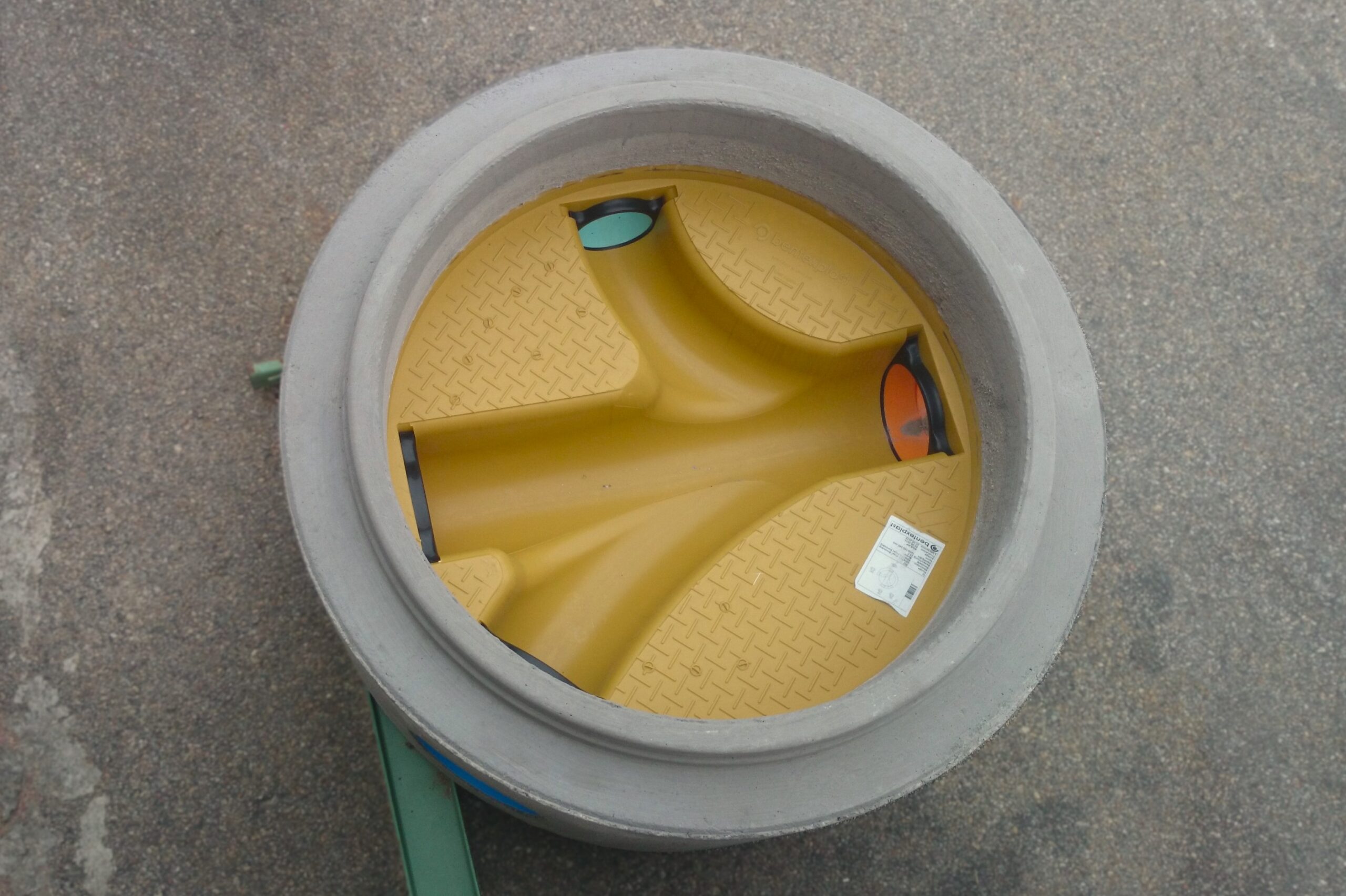

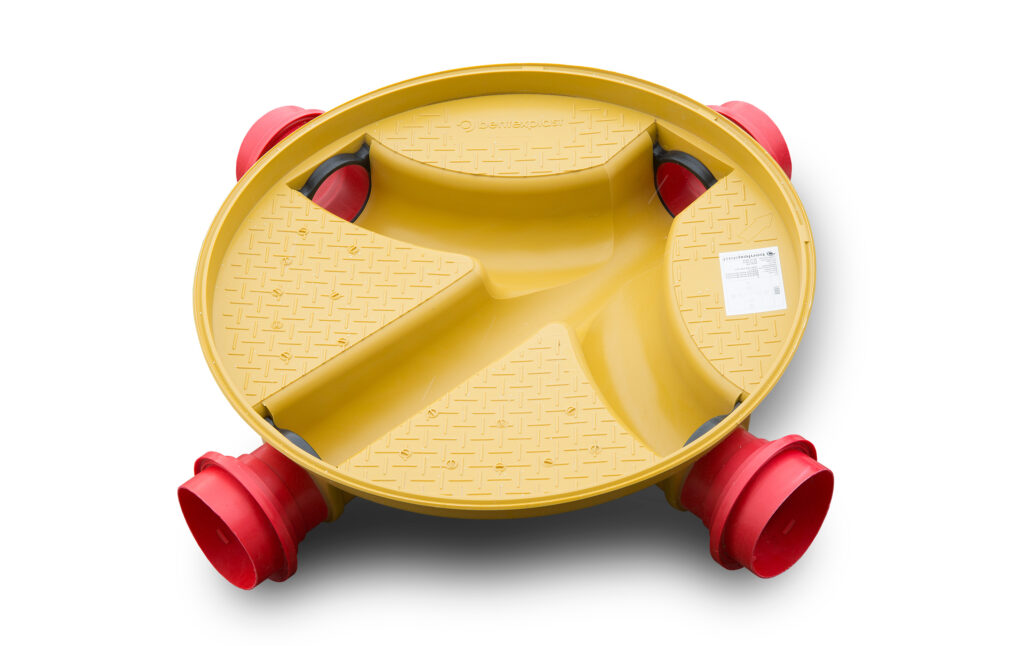

Manhole base liner from PP (PE)
Large range of standardized types in dimensions DN 800, DN 1000 and DN 1200, channel diameter DN 150 to DN 400.
We manufacture manhole base liners made of thermoplastic materials – polypropylene (PP) or polyethylene (PE) – using the wacuum heatforming method.
Sockets of manhole liners for pipes: KG, Ultra Rib DIN, PP Master, vitrified clay, concrete integro, etc. – see. Catalogue.
Standard colours for PP are yellow and blue, for PE white
Manhole base liners can also be supplied without sockets on request.

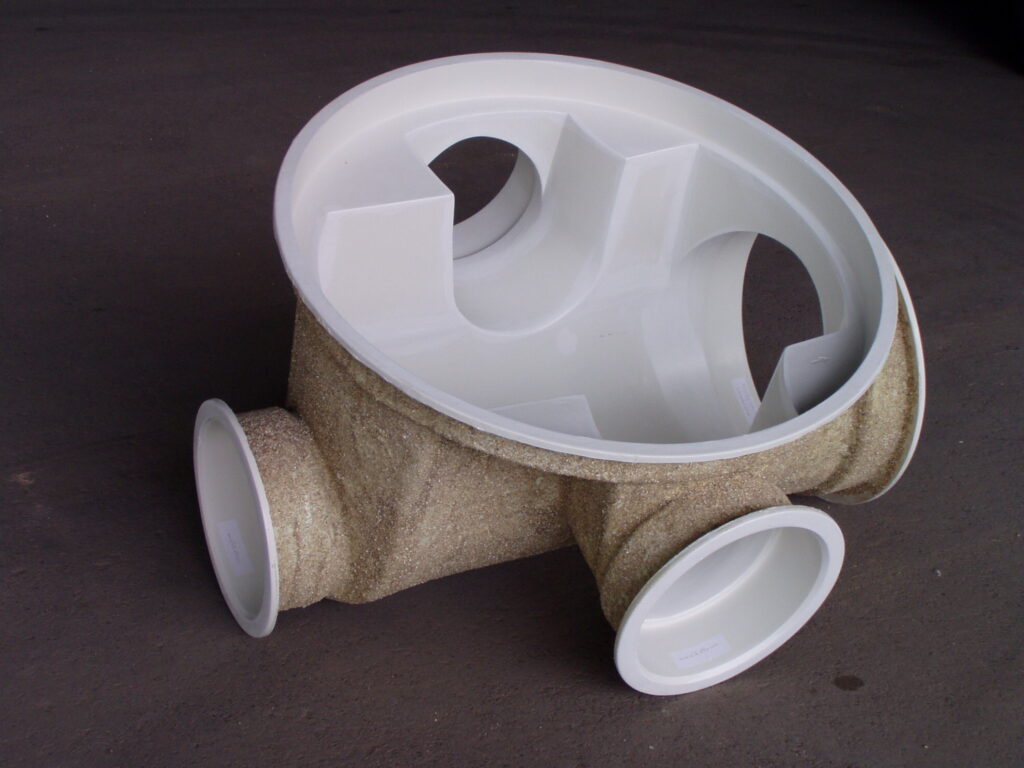

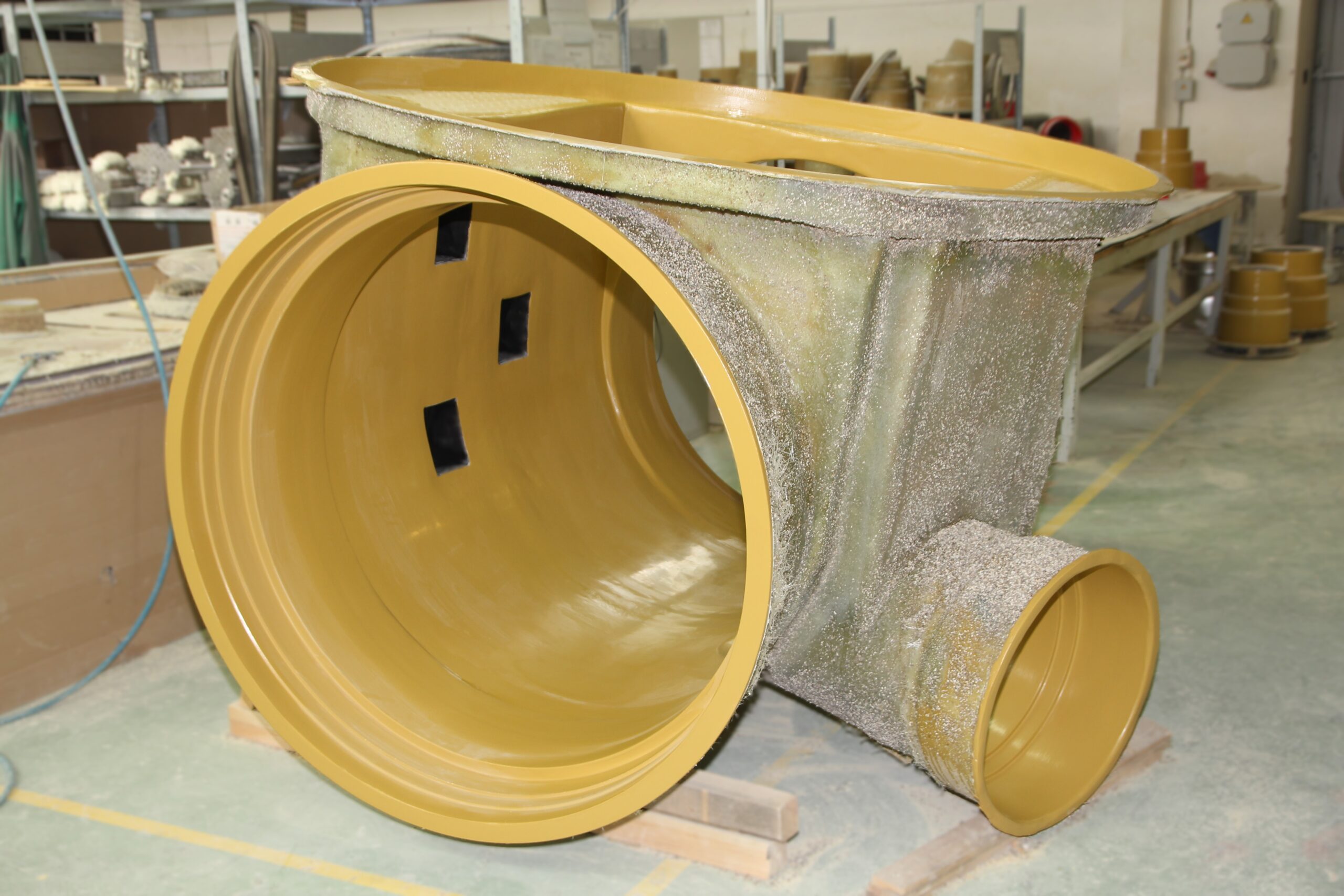

Manhole base liner from
Fibreglass laminate (GRP)
Atypical manhole base liners with huge variability according to customer requirements in dimensions DN 600 to DN 2000, channel diameter DN 150 to DN 1000.
We produce manhole base liners made of laminate (GFK) using the fibre spray lamination method.
Fitted with sockets for pipes: KG, Ultra Rib DIN, PP Master, vitrified clay, concrete integro, etc. – see Catalogue.
Standard colours for GRP are yellow and blue.

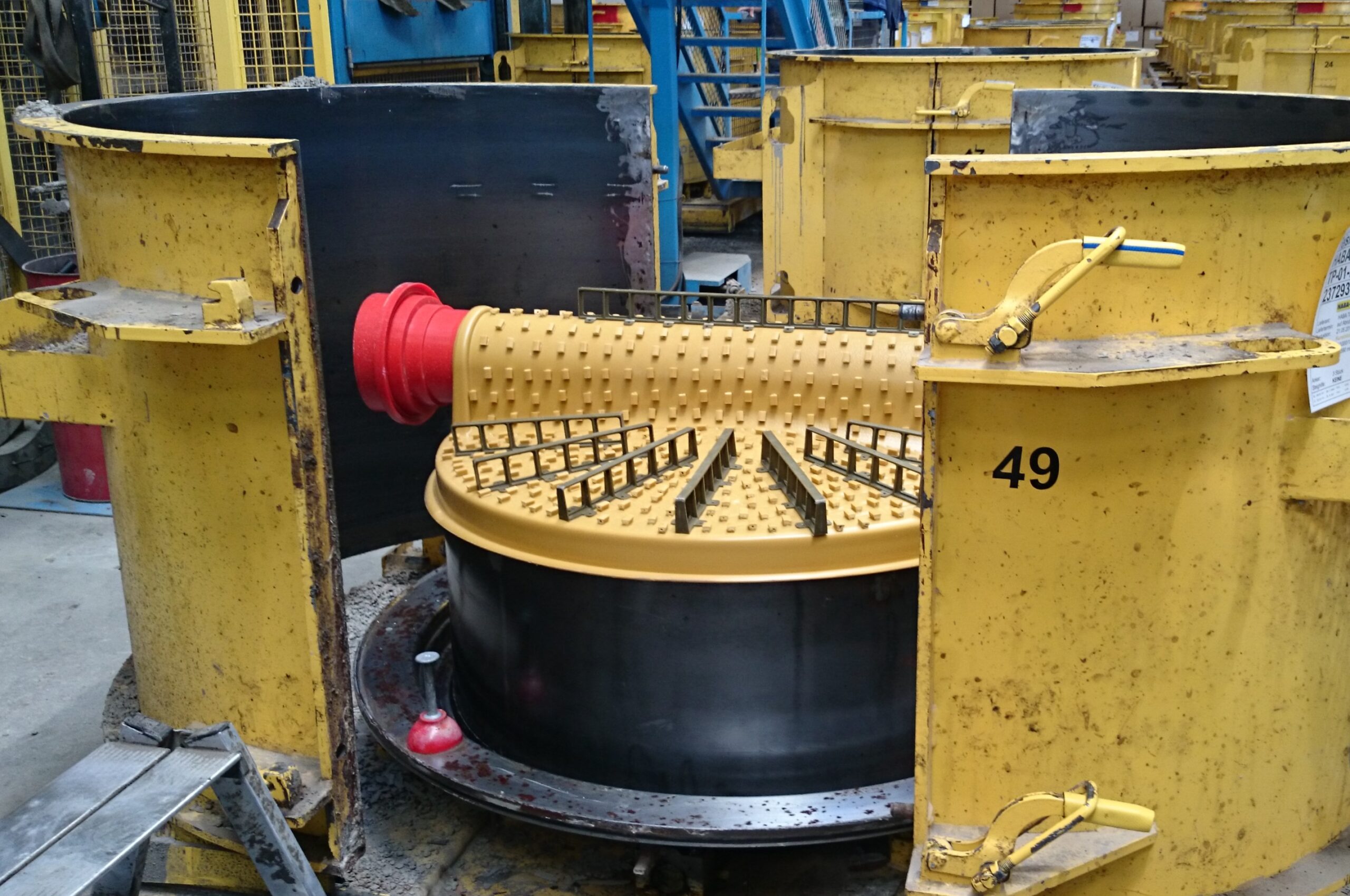

Manhole base liner with a plastic inliner
PP manhole base liners in dimensions DN 800, DN 1000 and DN 1200 are also available in a version with plastic inliner of the manhole wall to the first joint.
